Logic App 24 - Modify Workflow and Key Vault Version

Modify Workflow and Key Vault Version

信息

Scenario

In certain scenarios, a logic app can be triggered in multiple ways and that could reveal sensitive data. Leverage this information to obtain the flag from the key vault.

Overview

What is logic app workflow?

A logic app workflow is a visual representation and implementation of a business process or integration scenario in Azure Logic Apps. It defines the steps, actions, and conditions that are executed in a specific sequence to automate a particular workflow.

Hint

  • make use of the key vault connector action.

Impact

  • Sometimes key vault secrets versions contain sensitive credentials that could be utilized to increase the attack surface and access new or legacy applications.

Reference

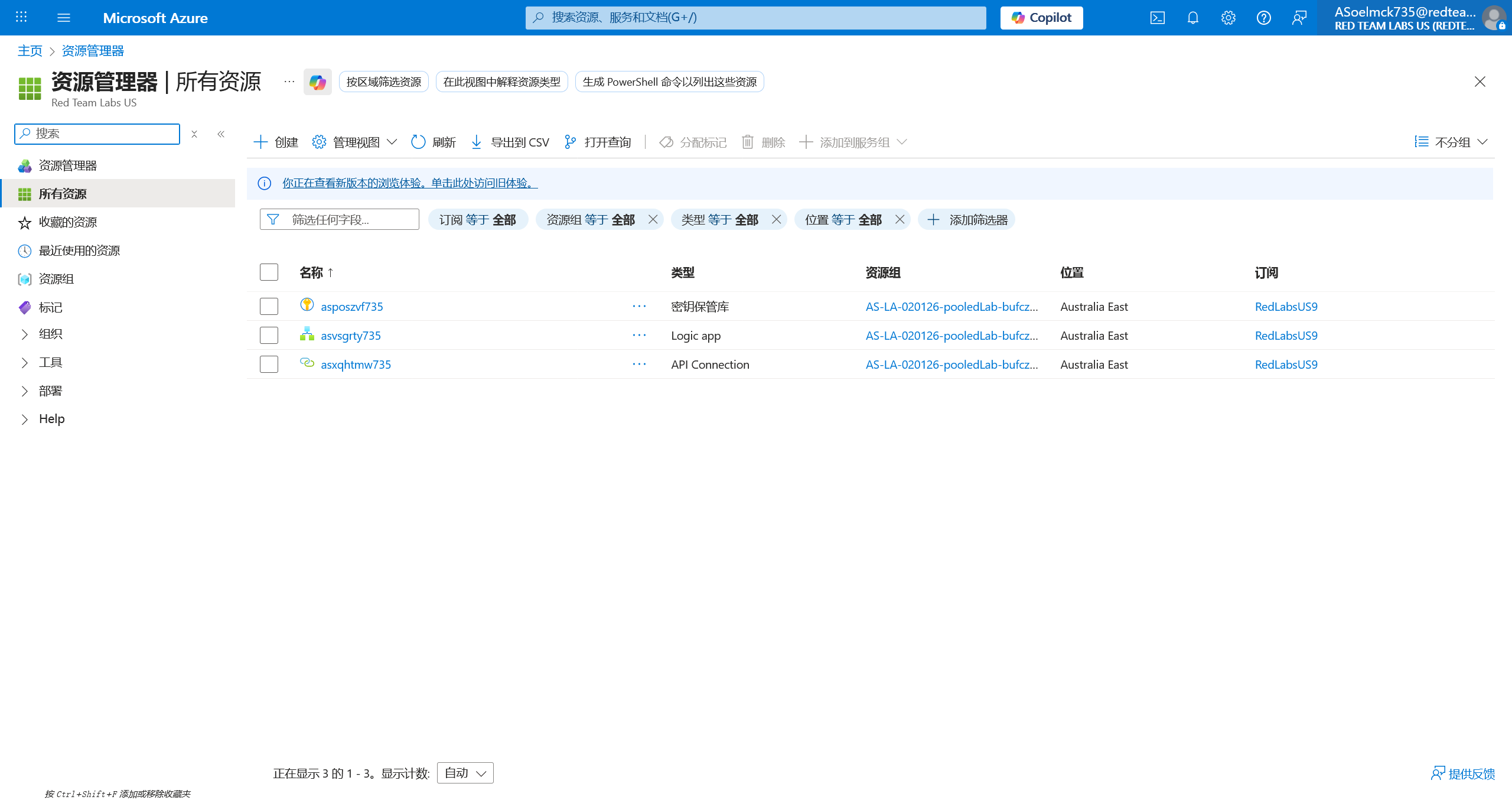

使用题目给出的 UserCreds 信息登录 Azure 后，查看所有资源

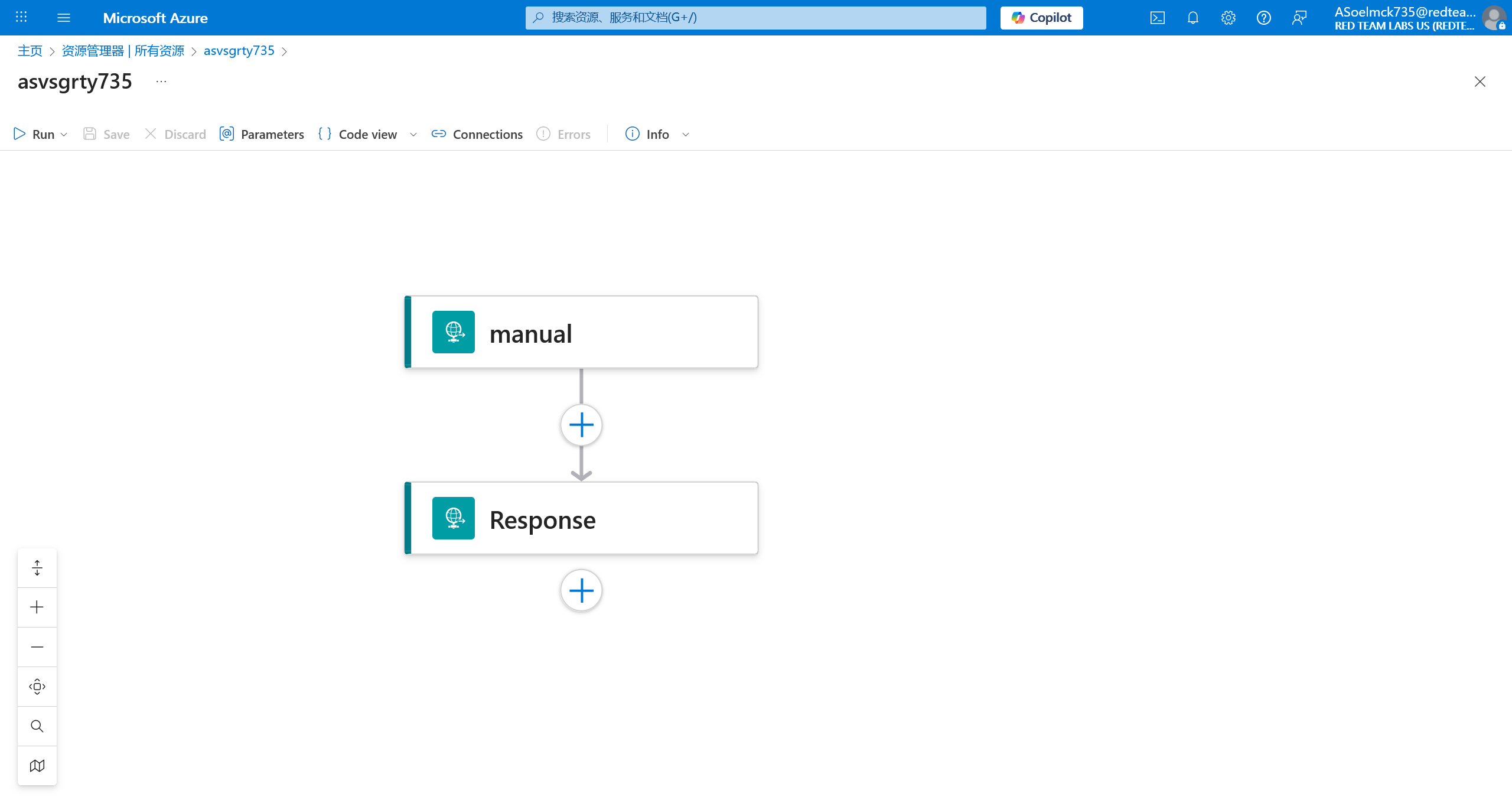

打开 Logic app的编辑界面

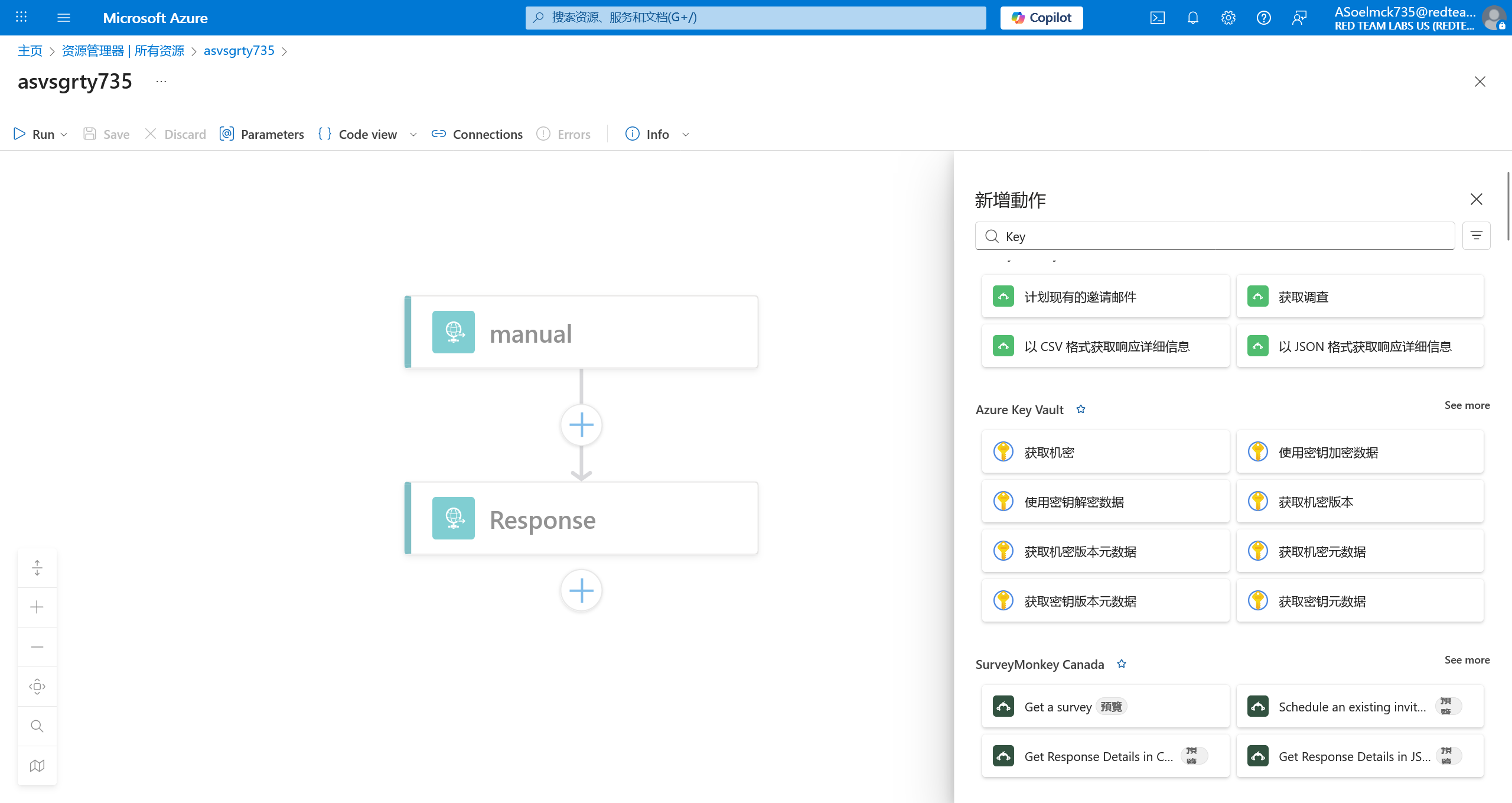

在其中添加获取Key Vault的操作

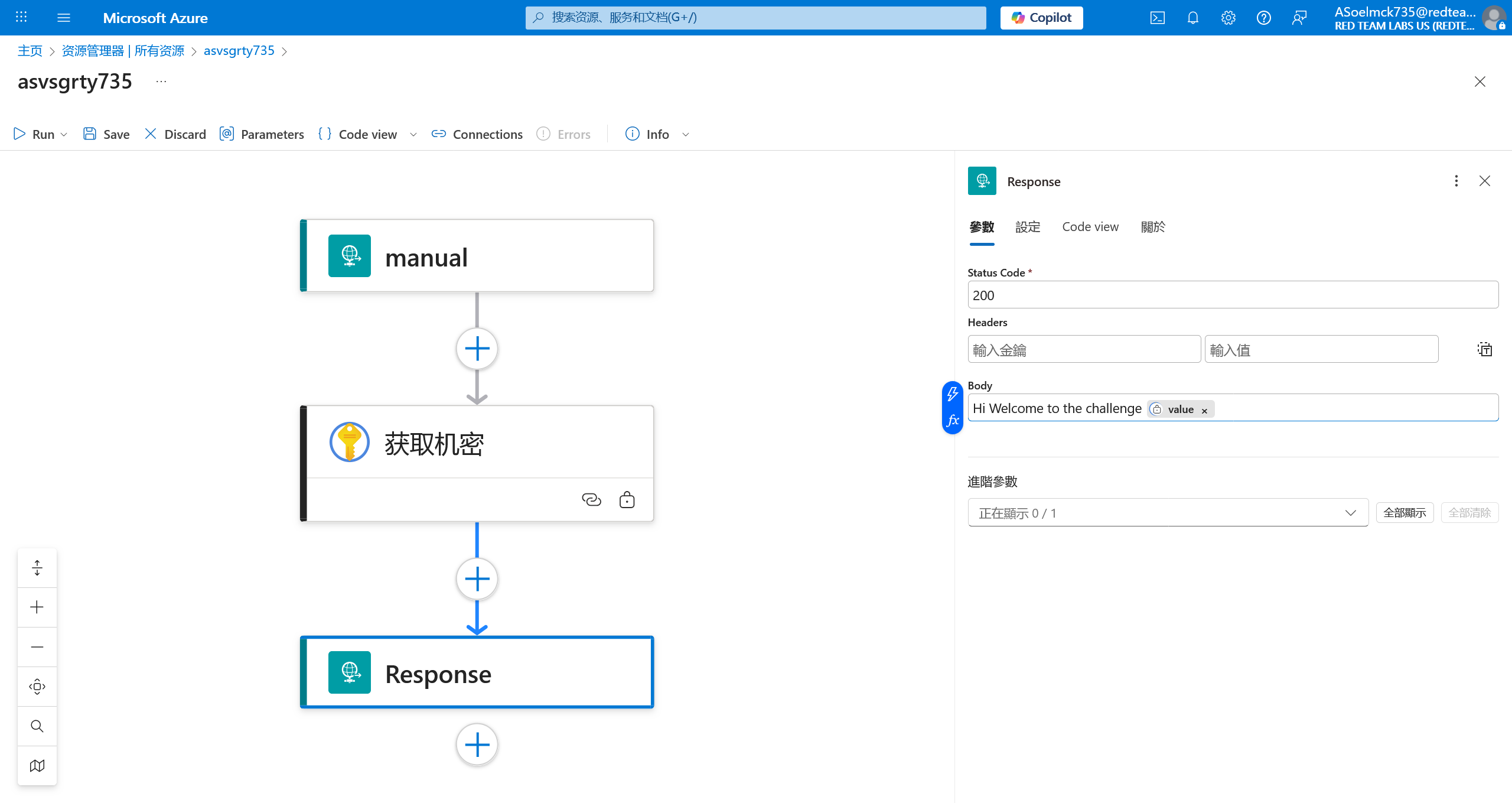

并将获取的机密附加到返回包中

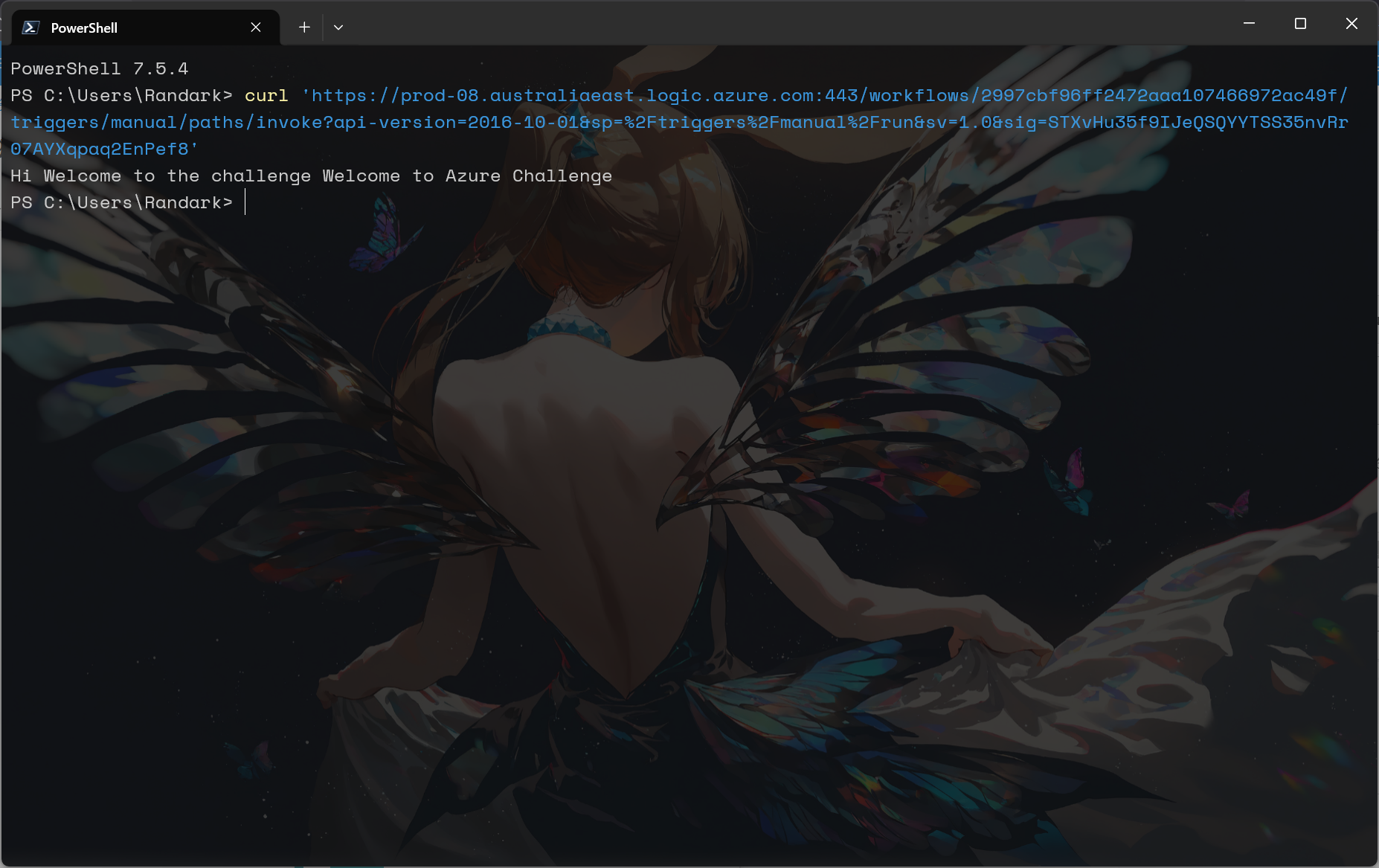

尝试触发Logic app

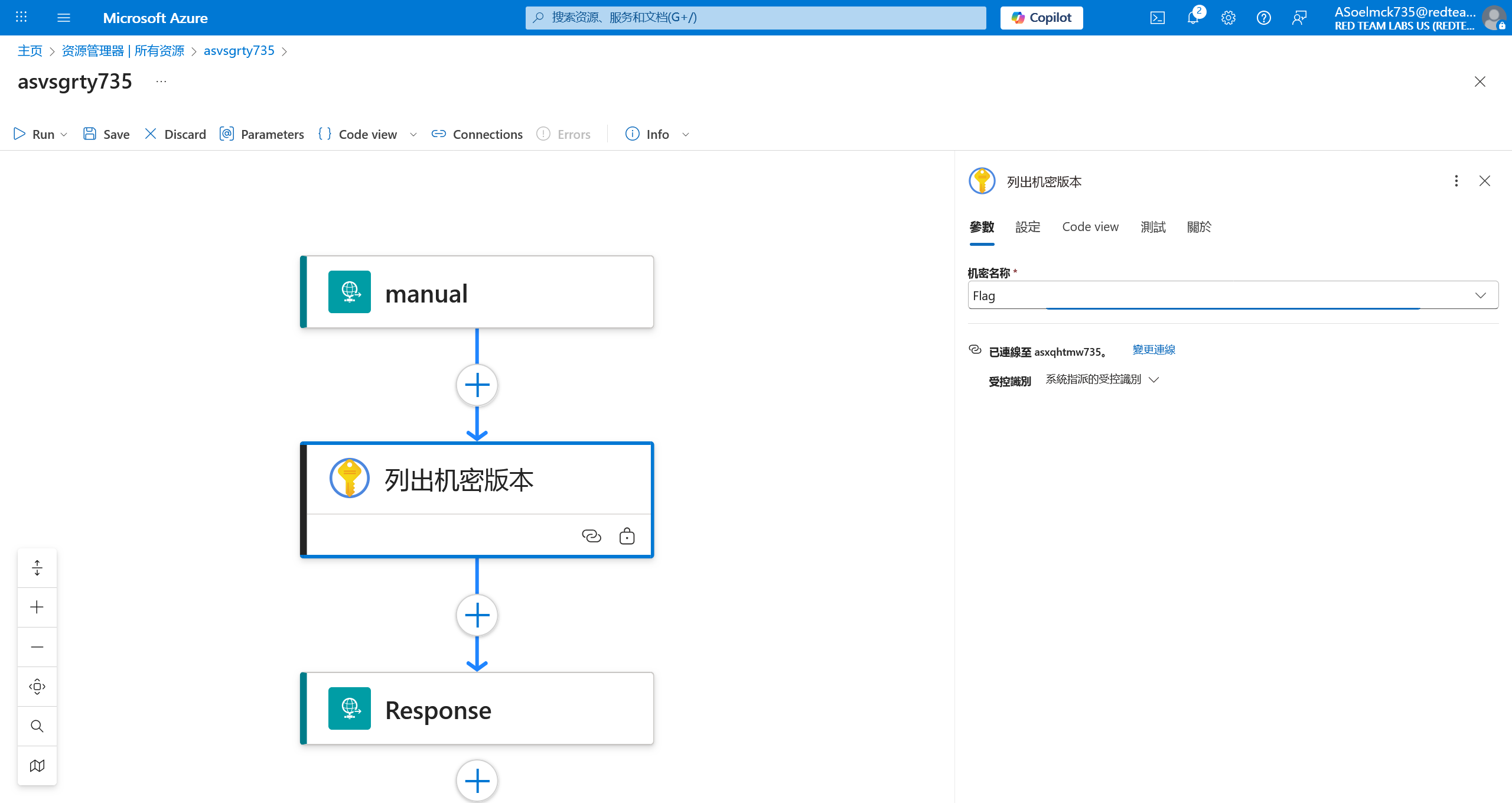

更改一下，查看当前完整的Key Vault


查看完整的历史

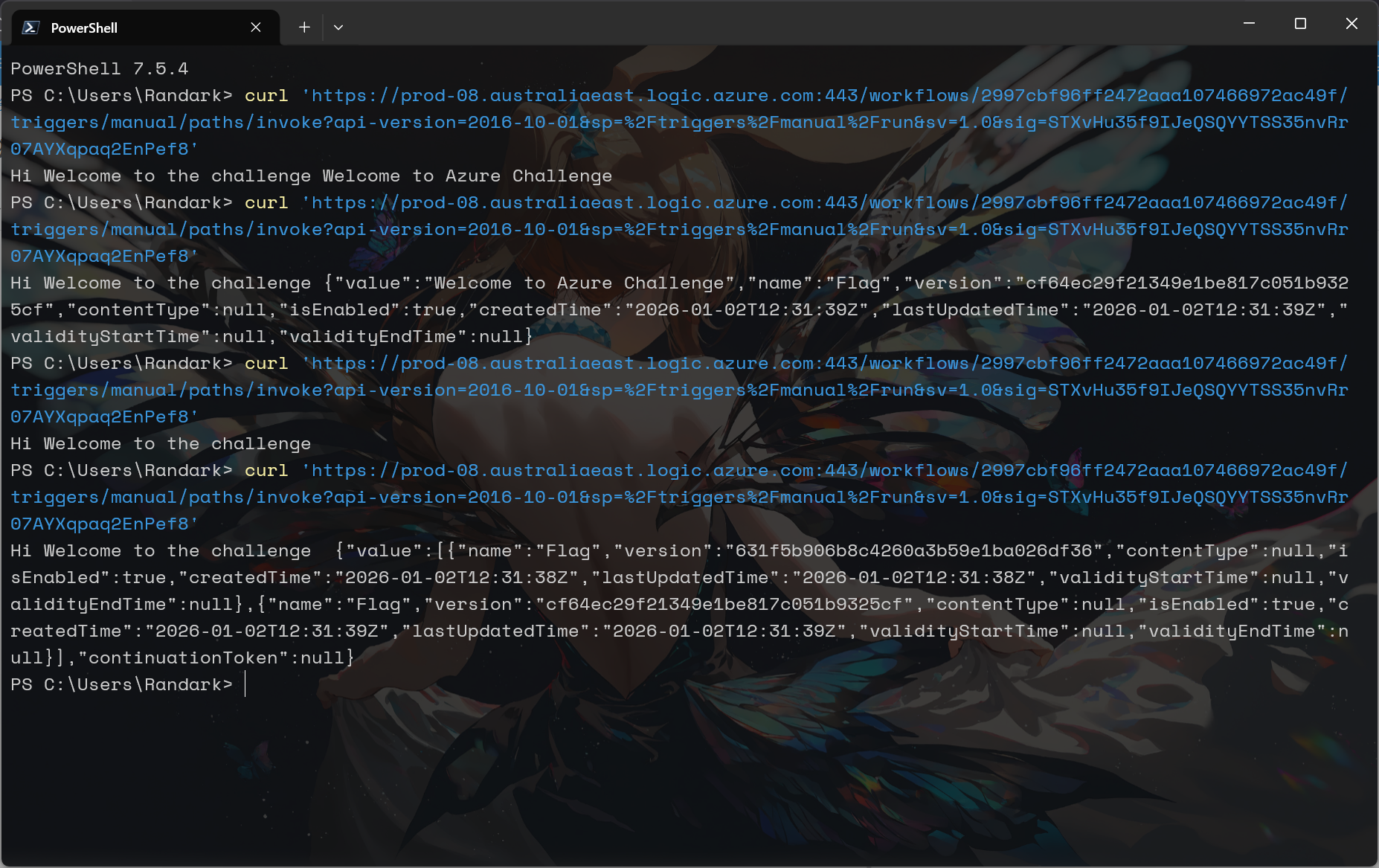

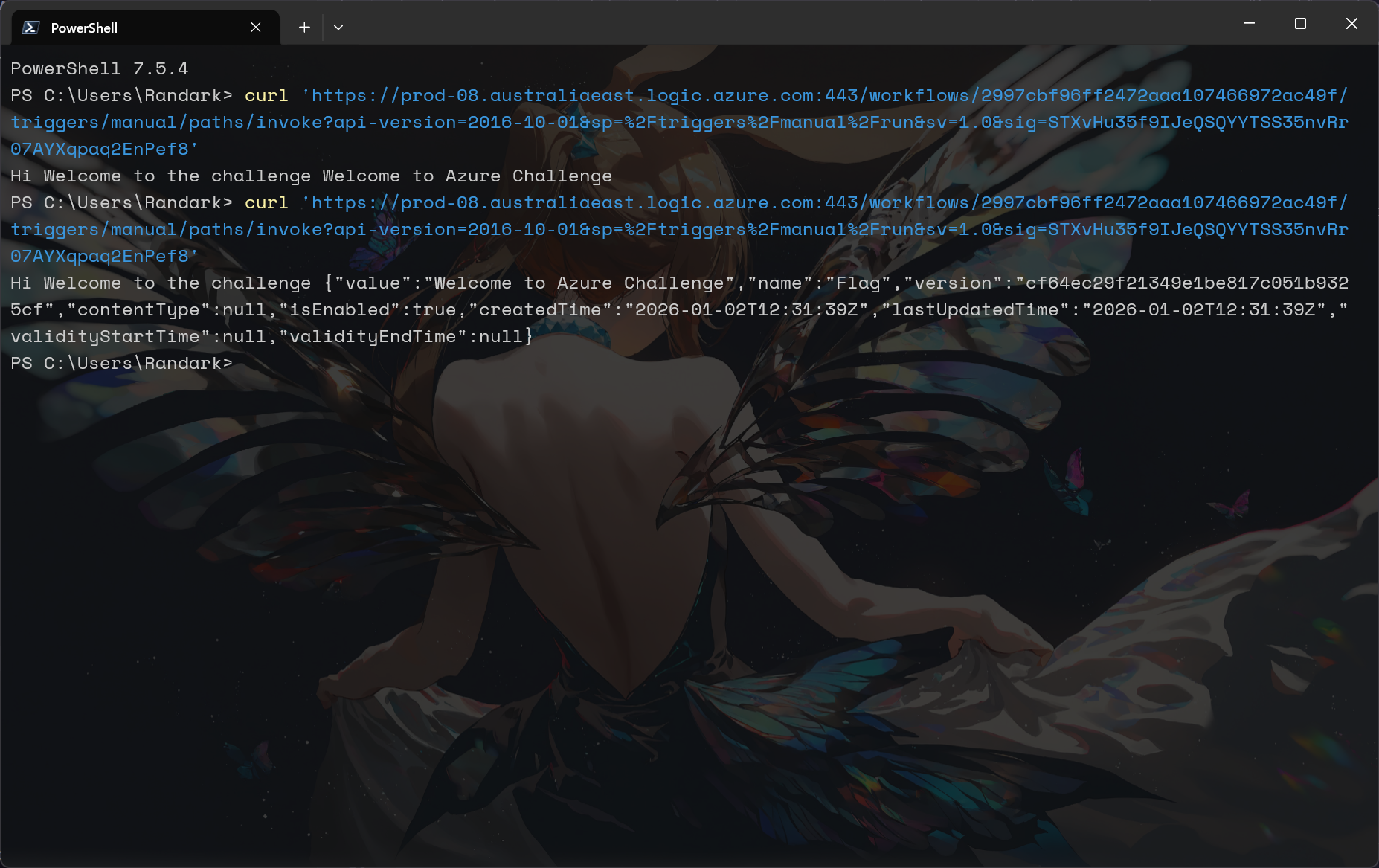

触发 Logic app


{
    "value": [
        {
            "name": "Flag",
            "version": "631f5b906b8c4260a3b59e1ba026df36",
            "contentType": null,
            "isEnabled": true,
            "createdTime": "2026-01-02T12:31:38Z",
            "lastUpdatedTime": "2026-01-02T12:31:38Z",
            "validityStartTime": null,
            "validityEndTime": null
        },
        {
            "name": "Flag",
            "version": "cf64ec29f21349e1be817c051b9325cf",
            "contentType": null,
            "isEnabled": true,
            "createdTime": "2026-01-02T12:31:39Z",
            "lastUpdatedTime": "2026-01-02T12:31:39Z",
            "validityStartTime": null,
            "validityEndTime": null
        }
    ],
    "continuationToken": null
}

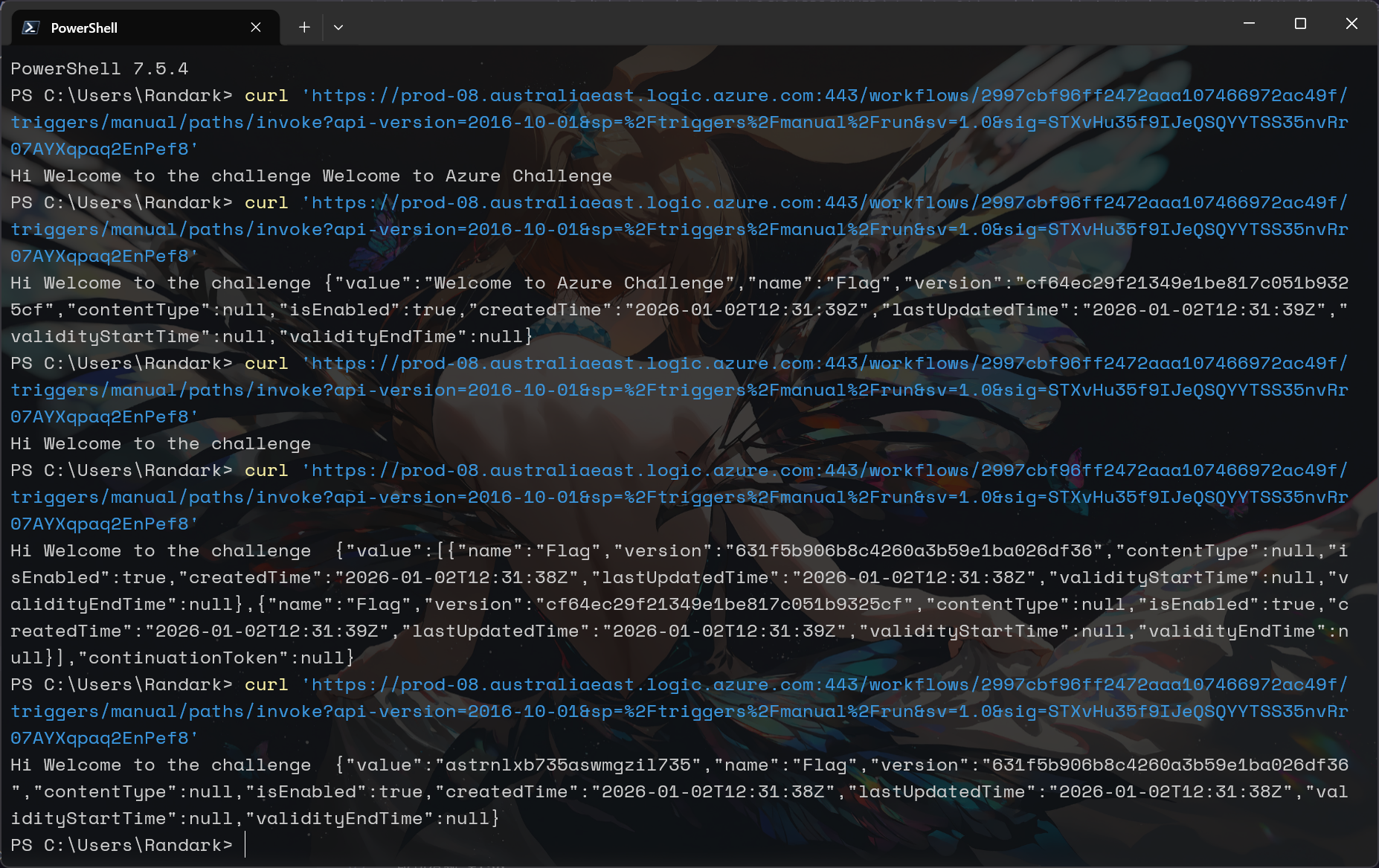

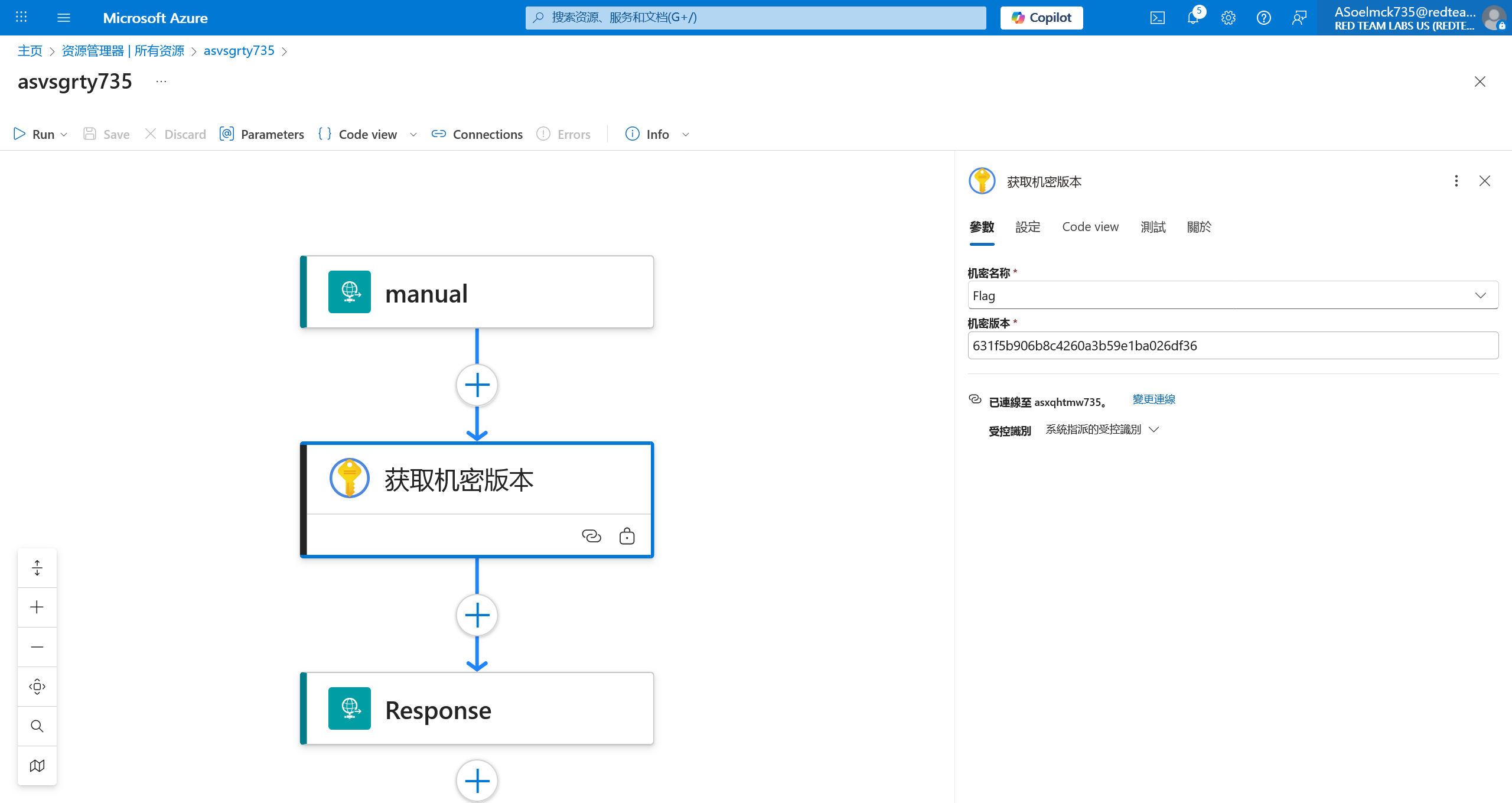

尝试读取另外一个版本


成功得到 flag


Flags
Which key vault logic app connector did we use to list the key vault versions? (Get versions or List secret versions)
List secret versions
Which key vault logic app connector did we use to fetch the flag? (Get versions or Get secret version)
Get secret version
What is the flag value we obtain ?
astrnlxb735aswmgzil735
